Send Cloudflare Logs to Grafana Loki

Logpush to Grafana Loki Endpoint #

Cloudflare Logpush can send logs to any HTTP Endpoint, with this project I want to configure Grafana Loki as a logging destination

To transform the incoming data from Logpush to a format Grafana Loki understands, I'm going to use a Worker to do the following:

• take incoming gzipped Logpush data, unpack it
• merge all fields into the Loki API format and send it off to the destination

This solution still requires transforming the data, but it can be done from Workers directly and does not require an intermediary storage location.

Create the Worker #

• create a new Worker with Cloudflare Wrangler
• update wrangler.toml and change the type from javascript to webpack as well as adding the usage_model to unbound, example wrangler.toml:

name = "cf-logpush-loki"
type = "webpack"

account_id = "abc1234"
workers_dev = true
route = ""
zone_id = ""
usage_model = "unbound"

• install the dependencies

npm install

• create an environment variable with the name lokiHost and use your Loki Endpoint URL as the value:

wrangler secret put lokiHost

example Loki host: https://logs-prod-us-central1.grafana.net/loki/api/v1/push

• finally, let's upload and publish the worker

wrangler publish

Note down the returned URL to create the actual Logpush job.

Create Logpush Job #

Here's a cURL request to create a Logpush Job with most available fields already included:

curl --location --request POST 'https://api.cloudflare.com/client/v4/zones/<zone id>/logpush/jobs' \
--header 'X-Auth-Email: you@example.com' \
--header 'X-Auth-Key: abcSecretAPIKey' \
--header 'Content-Type: application/json' \
--data-raw '{
    "name": "http",
    "logpull_options": "fields=BotScore,BotScoreSrc,CacheCacheStatus,CacheResponseBytes,CacheResponseStatus,CacheTieredFill,ClientASN,ClientCountry,ClientDeviceType,ClientIP,ClientIPClass,ClientRequestBytes,ClientRequestHost,ClientRequestMethod,ClientRequestPath,ClientRequestProtocol,ClientRequestReferer,ClientRequestURI,ClientRequestUserAgent,ClientSSLCipher,ClientSSLProtocol,ClientSrcPort,ClientXRequestedWith,EdgeColoCode,EdgeColoID,EdgeEndTimestamp,EdgePathingOp,EdgePathingSrc,EdgePathingStatus,EdgeRateLimitAction,EdgeRateLimitID,EdgeRequestHost,EdgeResponseBytes,EdgeResponseCompressionRatio,EdgeResponseContentType,EdgeResponseStatus,EdgeServerIP,EdgeStartTimestamp,FirewallMatchesActions,FirewallMatchesRuleIDs,FirewallMatchesSources,OriginIP,OriginResponseBytes,OriginResponseHTTPExpires,OriginResponseHTTPLastModified,OriginResponseStatus,OriginResponseTime,OriginSSLProtocol,ParentRayID,RayID,SecurityLevel,WAFAction,WAFFlags,WAFMatchedVar,WAFProfile,WAFRuleID,WAFRuleMessage,WorkerCPUTime,WorkerStatus,WorkerSubrequest,WorkerSubrequestCount,ZoneID&timestamps=unixnano",
    "destination_conf": "https://your.example.workers.dev?header_Authorization=Basic%20dXNlcm5hbWU6cGFzc3dvcmQK&job=lokiJobName",
    "max_upload_bytes": 5000000,
    "max_upload_records": 1000,
    "dataset": "http_requests",
    "frequency": "high",
    "enabled": true
}'

• Please make sure to update the following fields in the curl request above:
• your own zone ID instead of <zone id>
• your own API Key and/or E-Mail and Global API Key

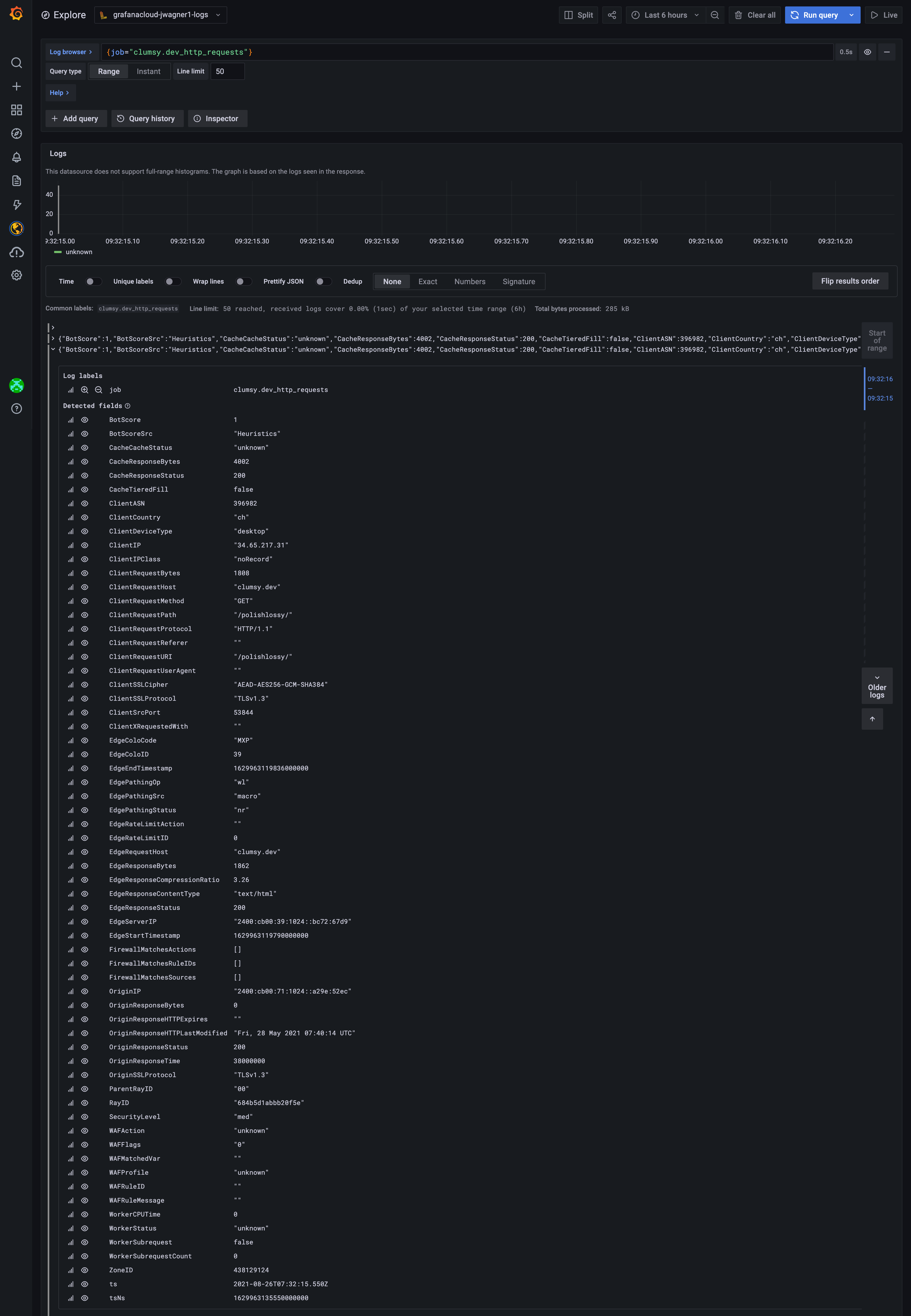

• You might want to update the logpull_options (check API Docs)
• destination_conf enter your own workers domain in there, but keep the ?header_Authorization=Basic%20, just update the Authorization header with your own username and password
• Update the job query string to the stream name you want to see in Grafana later on.

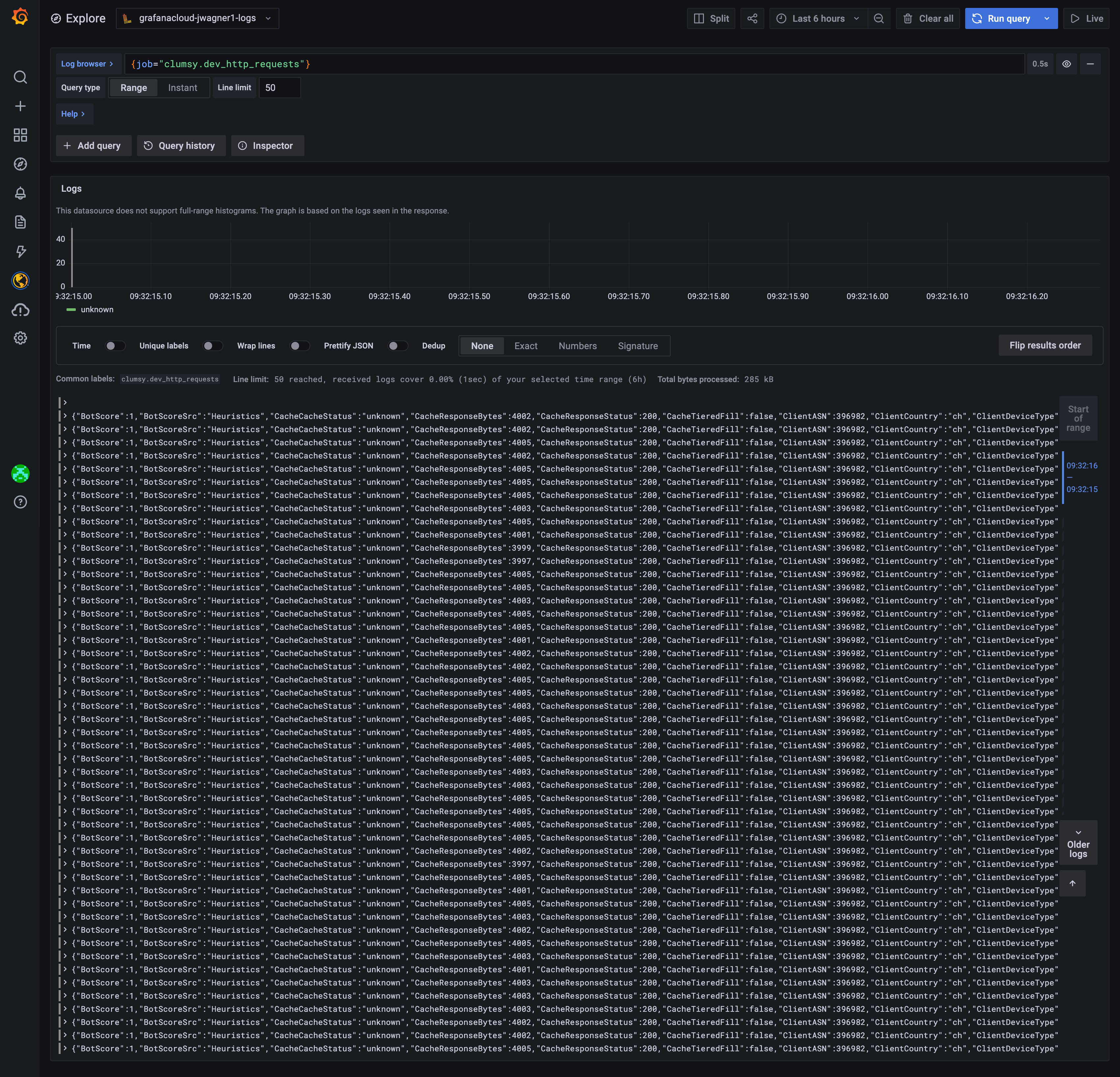

If everything went according to plan, you should see your new Logpush Job in the Analytics => Log tab as well as in Grafana Loki.

Debugging #

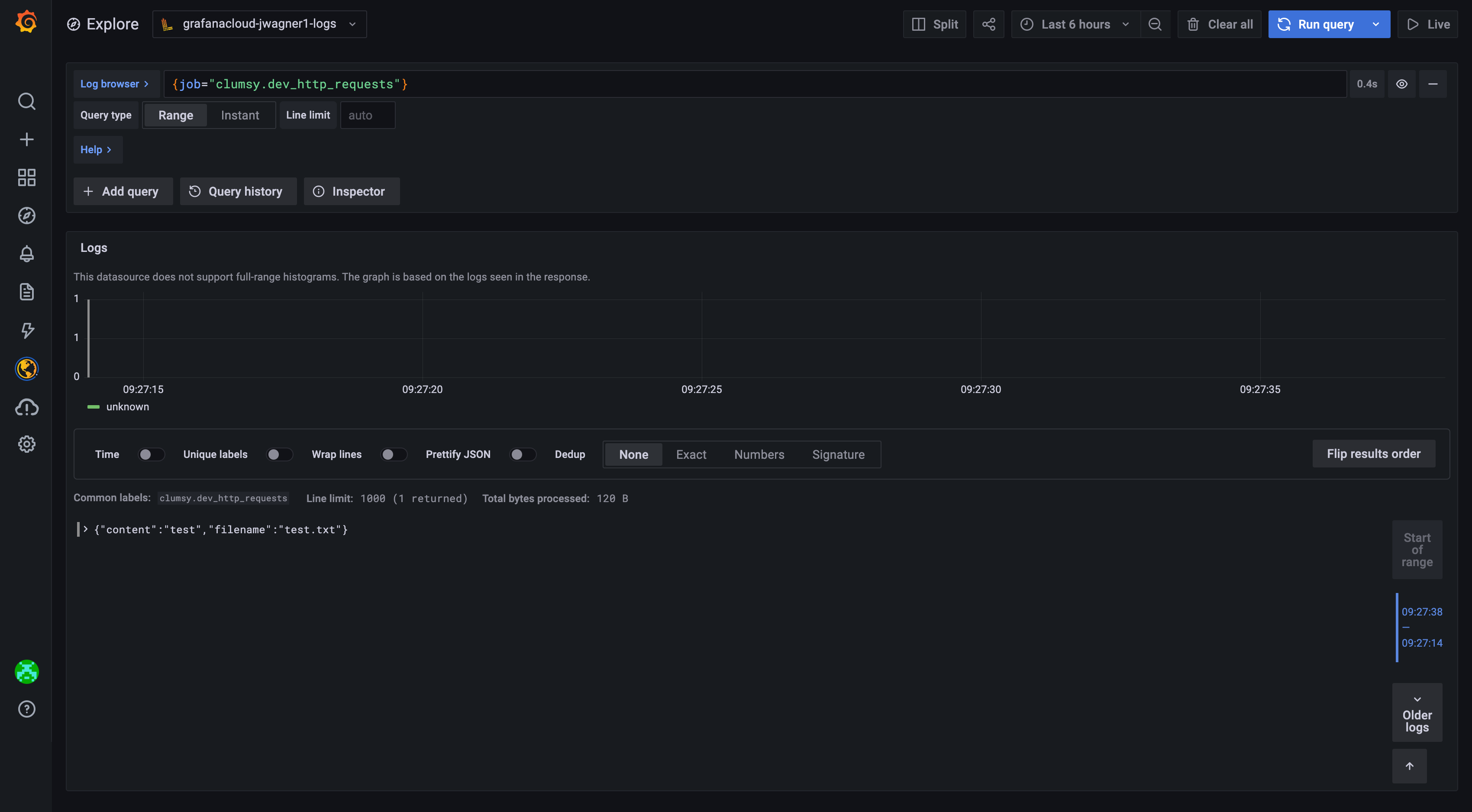

The initial creation of the Logpush job will push one JSON line to Loki, you should see something along the lines:

{"content": "test", "filename": "test.txt"}

In your Loki logs.
